Open Control Platform
One Controller. Multiple Applications.
An open and configurable electronic control platform designed to accelerate development of vehicle, marine, industrial and defence control applications.

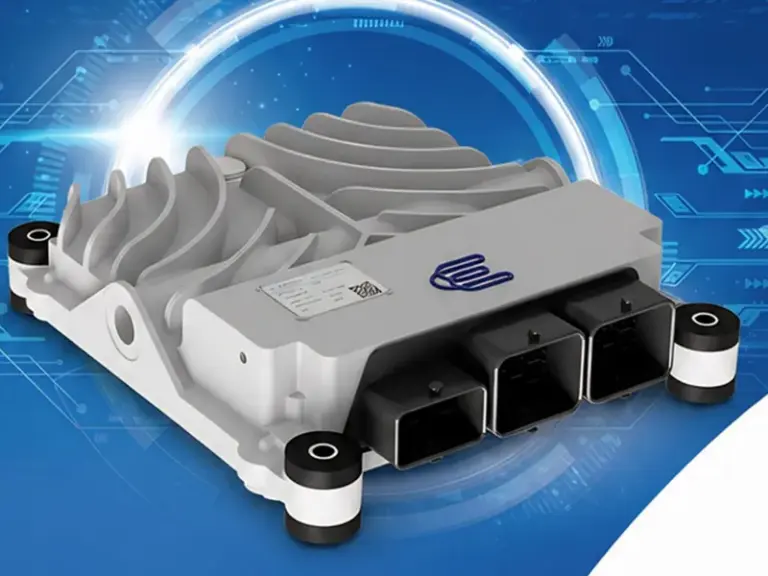

The OCP6000 is a single hardware and software platform for different control applications. The application is developed for model-based design tools, and the ready-made base software supports diagnostics and calibration. It is designed for automotive, maritime, rail and defence applications.
- Production-oriented controller platform
- Model-based development integration
- Flexible application / base-software architecture
- J1939 and UDS support
- User-configurable I/O
- Automotive, marine, rail and defence applications
- Fully compatible with model-based design.
- Design suitable up to ASIL-B level.
- Production-ready open hardware.
- -40 … +105 °C operation, IP69K protection.
The OCP6000 is a single hardware and software platform for different control applications. The application is developed rapidly with model-based design tools, and the ready-made base software supports diagnostics and calibration. It is designed for automotive, maritime, rail and defence applications.
- Fully compatible with model-based design.
- Design suitable up to ASIL-B level.
- Production-ready open hardware.
- -40 … +105 °C operation, IP69K protection.
Product Brochure
TECHNICAL SPECIFICATIONS
| CORE PROCESSING | |
| Processor | MPC5777C |
| Clock Rate | 300 MHz |
| Flash Memory | 8 MB |
| SRAM | 512 KB on-chip SRAM (incl. 64 KB standby RAM) |
| RTC | Yes |
| COMMUNICATION | |
| CAN Bus | 3 x CAN, ISO/DIS 11898, SAE J1939, XCP |
| DIGITAL INPUTS | |
| Digital Input Pins | 10 x configurable, 6 x short-to-GND |
| POWER | |
| Supply Voltage | 16 … 33 VDC |
| ANALOG INPUTS & SENSORS | |
| Analog Input Resolution | 16-bit |
| Analog Input Pins | 15 x 0 … 5 VDC, < 20 mA, < 20 Hz, 0 … 5 V ratiometric |
| Sensor Supplies | 2 x 300 mA, 5 VDC |
| NTC Sensor Inputs | 4 x 50 Ω … 50 kΩ, configurable |
| PT Sensor Inputs | 7 x 800 Ω … 1800 Ω, configurable |
| Voltage Inputs | 4 x 0 … 33 V |
| LOW-SIDE OUTPUTS | |
| Injector Outputs | 6 x peak & hold (25 A peak / 15 A hold), configurable |
| GP / PWM Outputs | 2 x 2.7 A, 24 VDC with monitoring and diagnostic; 8 x 1.5 A, 24 VDC with monitoring and diagnostic; 2 x 3 A, 24 VDC with diagnostic |
| HIGH-SIDE OUTPUTS | |
| Injector Outputs | 2 x bank, boost/hold 48 V / < 25 A / T < 1 ms, 24 V / < 15 A / T < 5 ms; 48 V generation, current control, second switch ability |
| GP / PWM Outputs | 12 x 3 A, 24 VDC with monitoring; 8 x 1 A, 24 VDC with monitoring |
| LAMP OUTPUT | |
| Lamp Output | 10 x configurable, 6 x short-to-GND |
| INTERNAL FEATURES | |
| Injector Bank Supply | 10 x configurable, 6 x short-to-GND |
| MECHANICAL & ENVIRONMENTAL | |
| Dimensions | 220 x 247 x 57 mm (W x L x H) |
| Material | Aluminum |
| Operation Temperature | -40 … +105 °C (with active cooling) |
| Mounting | 4 x M7 bolt |
| Weight | 2.5 ± 0.5 kg |
| Connectors | Molex CMC 154-pin, 3-pocket |
| Vibration | DIN EN 60068-2-6 |
| Environmental Protection | IP69K |
| Location | Engine compartment / chassis |
| COMPLIANCE & STANDARDS | |
| CISPR 25 | Conducted and radiated emissions compliance |
| DIN EN 11452-4 | Level 2, 150 kHz – 400 MHz |
| DIN EN 11452-2 | Level 2, 200 MHz – 3.2 GHz; AM: 200 – 800 MHz, PM: 800 MHz – 3 GHz |
| DIN EN 55025 (Ch. 6.2) | Class 3, 150 kHz – 108 MHz |
| DIN EN 55025 (Ch. 6.4) | Class 3, 150 kHz – 2.5 GHz; horizontal and vertical polarization |
| DIN EN 10605 (Ch. 9) | ESD: ±8 kV contact |
| ISO 16750-2 Withstand Voltage | Electrical loads up to 58 V |
| ISO 16750-2 Starting Profile | US6: 6 V, UA: 6.5 V |
| ISO 16750-2 Load Dump | US*: 58 V |
| MIL-STD-1275E | Sections 4.1, 5.1.1.1, 5.1.2, 5.1.1.2, 5.1.3.1.2 |
